The working mechanism of the AS - HP is both innovative and effective. Yarns are carefully placed inside a sealed cylinder, where compressed air is injected to a specific pressure. In the initial stage, this high - pressure air squeezes out the majority of the moisture present in the wet yarn balls. Subsequently, a fan - driven stream of heated, high - temperature and high - pressure air penetrates the yarn. This causes the remaining moisture to evaporate, and within the closed - loop system of the machine, the moisture - laden air circulates. The moisture is then condensed and drained away through a cooler, a process that continues until the yarn is completely dry. This closed - loop operation not only ensures maximum efficiency but also minimizes the risk of external contamination, making it ideal for applications where product purity is of utmost importance.
The AS - HP's performance is not only about speed but also about quality. By precisely controlling the pressure and temperature, it ensures that the drying process is gentle on the materials, preventing damage to the yarn's structure. This is particularly important for delicate or high - value yarns, where maintaining the integrity of the material is as crucial as removing the moisture.
Beyond the textile industry, the AS - HP can also find applications in other sectors where rapid and efficient drying of materials is required. For example, in the production of certain industrial materials or even in some food - related applications where moisture removal from specific raw materials is a critical step.
In the dynamic realm of the textile industry, the pursuit of advanced and efficient dyeing technologies is relentless. The demand for equipment that can handle a diverse range of fabrics, offer cost - effective solutions, and produce top - notch dyed products has led to the emergence of a groundbreaking innovation - the AS - MULTI - FLOW series of high - temperature multi - flow full - mode dyeing machines.
This new - generation dyeing machine stands out with its unique ability to operate in three distinct modes: pure air - flow dyeing mode, pure over - flow dyeing mode, and air - over - flow mixed dyeing mode. This versatility allows it to cater to a wide array of dyeing cloth types, making it a one - stop solution for textile manufacturers with varied product lines.
One of the most remarkable features of the AS - MULTI - FLOW series is its carefully engineered circulation system, which combines airflow and liquid flow in a superimposed manner. This design enables the fabric to move smoothly at an impressively low bath ratio of 1:3. By reducing the amount of water and dye required for each batch, the machine not only cuts down on production costs but also contributes significantly to environmental sustainability.
The fabric lifting system of the AS - MULTI - FLOW series is another area where innovation shines. The seamless integration of the double - stage nozzle and the guide pipe allows the fabric to reach a running speed of up to 400 m/min. This high - speed operation is crucial as it can meet the dyeing process requirements of different fabrics, from delicate and lightweight materials to more robust and heavy - duty textiles.
When it comes to technical specifications, the main cylinder of the AS - MULTI - FLOW series is a powerhouse. It can achieve a maximum fabric speed of 400 m/min, ensuring high - volume production. The maximum working pressure of 0.4 Mpa and a maximum operating temperature of 135°C make it suitable for high - temperature dyeing processes, which are often required for synthetic and blended fabrics. The heating rate is well - calibrated, with an average of 5°C/min from 25°C to 100°C and a specific rate for the 100°C - 130°C range (with dry saturated steam pressure at 0.7 MPa). The cooling rate is also efficient, dropping from 130°C to 100°C at an average of 3°C/min and from 100°C to 85°C at 2°C/min (with cooling water pressure at 0.3 Mpa and a temperature range of 5°C - 10°C).
The liquor ratio of 1:3 is a game - changer in the industry, as it represents a significant reduction compared to traditional dyeing machines. This low ratio not only saves resources but also results in more concentrated dyeing, leading to more vibrant and long - lasting colors.
For added flexibility, the machine offers an optional multi - function reserve cylinder. With a maximum operating temperature of 85°C and a maximum working pressure at atmospheric level, this reserve cylinder can handle specific dyeing processes or act as a backup during peak production times. Its heating rate, averaging 4°C/min from 25°C to 85°C (with dry saturated steam pressure at 0.7 MPa), and a capacity of about 1:4 - 5 of the main cylinder, make it a valuable addition to the AS - MULTI - FLOW series.
The AS - MULTI - FLOW series of high - temperature multi - flow full - mode dyeing machines is set to revolutionize the textile dyeing process. By offering a wide range of suitable fabrics, low production costs, and top - tier quality of dyed fabrics, it is poised to become the industry standard for textile manufacturers worldwide. As the industry continues to evolve towards more sustainable and efficient practices, the AS - MULTI - FLOW series is leading the way, providing a solution that meets the demands of both today's market and the future of textile manufacturing.

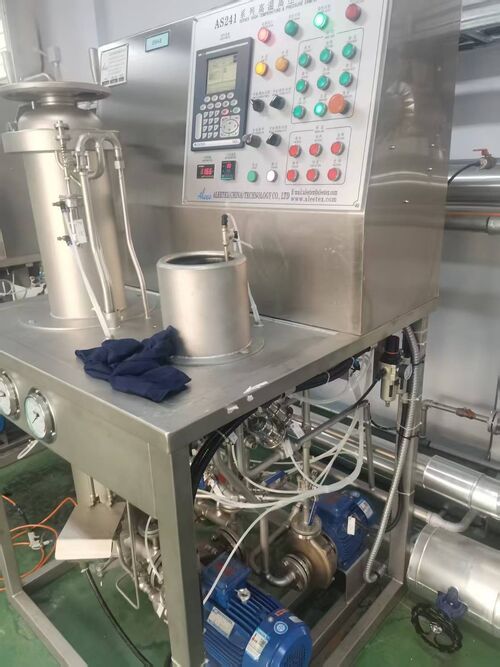

Innovative AS241D Series Yarn Package Dyeing Machine Revolutionizes Textile Dyeing Process

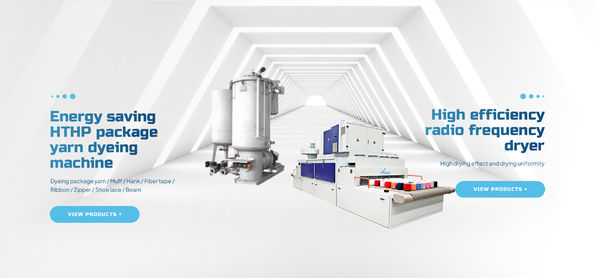

In the ever-evolving world of textile manufacturing, efficiency, sustainability, and versatility are key factors driving innovation. A new player has emerged in the market, set to transform the yarn dyeing process - the AS241D series of energy-saving package yarn dyeing machines. This advanced equipment is designed to meet the diverse needs of the textile industry, offering a host of features that enhance productivity while reducing environmental impact.
The AS241D series stands out with its unique 90° flat-plate reversal device, which ensures even distribution of dye liquor and promotes uniform color penetration. This innovative design, combined with a high-efficiency tube heat exchanger and an optimized centrifugal pump, enables the machine to achieve an impressively low liquor ratio of 1:5. By minimizing the amount of water and dye required for each batch, the AS241D not only cuts down on resource consumption but also reduces the cost of production.
One of the most significant advantages of the AS241D series is its compact footprint. Compared to conventional models, these machines take up less floor space, making them an ideal choice for textile mills looking to maximize their production capacity without expanding their facilities. Despite its smaller size, the AS241D does not compromise on performance. It can handle a wide range of yarn types, including polyester/blended yarns, cotton, acrylic, and wool, with equal ease.
For high-temperature dyeing of polyester and its blends, the AS241D can reach a maximum operating temperature of 135°C, maintaining a stable heating rate of 20°C - 130°C at an average of 5°C/min (with dry saturated steam pressure at 0.7Mpa). When it comes to normal-temperature processing of natural fibers like cotton and wool, the machine offers precise control over the dyeing environment, ensuring consistent results.
The machine's versatility extends beyond different fiber types. With interchangeable carriers, the AS241D can accommodate various materials such as nylon yarn, hank yarn, tape cords, and loose fibers. This adaptability makes it a one-stop solution for textile manufacturers engaged in diverse product lines, from high-fashion apparel to industrial textiles.
In addition to its operational flexibility, the AS241D series is engineered with safety and reliability in mind. The maximum working pressure of 0.4Mpa is carefully calibrated to ensure safe operation under high-temperature conditions. The cooling rate, which can drop from 130°C to 80°C at an average of 2.5°C/min (with cooling water pressure at 0.3Mpa and temperature between 5°C - 10°C), is designed to quickly and efficiently bring the machine back to a safe working state after the dyeing process.
The AS241D series of yarn package dyeing machines represents a significant leap forward in textile technology. By combining energy efficiency, compact design, and versatile functionality, it offers textile manufacturers a competitive edge in a global market that demands both quality and sustainability. As the industry continues to evolve, the AS241D is well-positioned to become the go-to choice for businesses looking to optimize their dyeing processes and reduce their environmental footprint.
Differences Between High-Temperature High-Pressure Dyeing Machines and Normal-Temperature Atmospheric-Pressure Dyeing Machines
1. Different Working Conditions
High-temperature high-pressure dyeing machines:The working temperature is usually above 100℃ (commonly 120-130℃, or even higher), and the working pressure is higher than atmospheric pressure (generally 0.2-0.5MPa, depending on specific temperature requirements). A sealed design is required to maintain the high-temperature and high-pressure environment.
Normal-temperature atmospheric-pressure dyeing machines:The working temperature is usually from room temperature to 100℃ (mostly the boiling temperature, i.e., 100℃), and the pressure is atmospheric pressure (1 standard atmosphere). There is no need for a sealed and pressure-resistant design; even an open or simply sealed structure can be adopted.
2. Different Applicable Fibers and Dyes
High-temperature high-pressure dyeing machines:They are mainly used for synthetic fibers (such as polyester, nylon, acrylic, etc.). These fibers have a dense structure and strong hydrophobicity, making it difficult for dyes to penetrate at normal temperature. High temperatures (around 130℃) are needed to intensify the movement of fiber molecular chains and increase the gaps, and they are used in conjunction with disperse dyes (special for polyester), acid dyes (special for nylon), etc., to achieve dyeing.
Normal-temperature atmospheric-pressure dyeing machines:They are suitable for natural fibers (cotton,flax,wool, silk, etc.) and some regenerated fibers (such as viscose). Natural fibers have strong hydrophilicity. At normal temperature or boiling (100℃), reactive dyes (for cotton,flax), acid dyes (for wool/silk), etc., can complete dyeing through penetration, reaction, or adsorption without the need for high temperature and high pressure.
I. Advantages of the Garment Dyeing Machine
1. High Efficiency and Energy-savingIt adopts an advanced water circulation system and heating technology to reduce the consumption of water and energy, thus lowering the production cost.2. Uniform DyeingThrough mechanical agitation, air flow or water flow circulation, it ensures that the dye penetrates evenly, avoiding the problem of color difference.3. High Degree of AutomationThe programmable control (PLC) system enables precise adjustment of parameters such as temperature, time, and water level, reducing human errors.4. Strong AdaptabilityIt can handle fabrics of different thicknesses and elasticities, such as denim, towels, and sportswear fabrics.
II. Main Uses of the Garment Dyeing Machine1. Fabric DyeingIt is used for the dyeing of yarns, fabrics, and ready-made clothes, such as processes with reactive dyes, disperse dyes, and vat dyes.2. Water-washing TreatmentIt is used to remove floating colors, sizing agents or chemical residues on fabrics, improving color fastness and handfeel.3. Post-finishing ProcessingSuch as enzyme washing (aging of denim), softening finishing, antibacterial treatment, etc.4. Laboratory Sample-makingSmall water-washing dyeing machines can be used for process tests to optimize production parameters.
1. According to Dyeing Material Form
Yarn Dyeing Machines
Designed for dyeing yarn in various forms (e.g., skeins, cheese cones, packages).
Cheese Dyeing Machines: Use cylindrical yarn packages (cheeses) immersed in dye liquor, ideal for uniform dyeing of cotton, polyester, and blends.
Skein Dyeing Machines: Process loose yarn skeins in rotating baskets, suitable for specialty fibers like wool or silk.

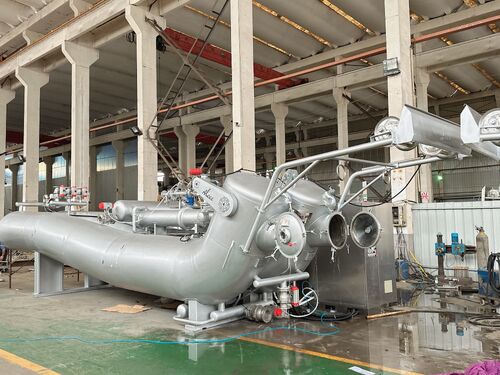

Fabric Dyeing Machines
Handle woven or knitted fabrics directly.

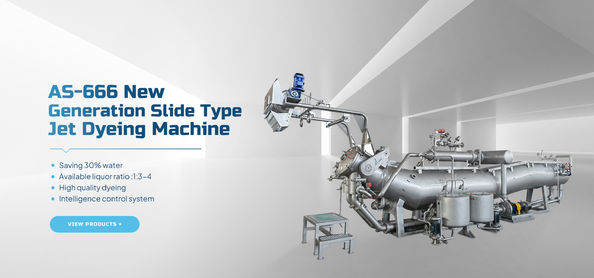

Jet Dyeing Machines: Use high-pressure dye liquor jets to circulate fabric through a closed system, reducing tension and suitable for delicate materials.
Jigger Dyeing Machines: Roll fabric onto a beam immersed in a dye bath, ideal for heavyweight fabrics like denim.
Winch Dyeing Machines: Transport fabric through a dye bath using a winch mechanism, suitable for medium to heavy fabrics.
Garment Dyeing Machines
Dye finished garments, often with stone-washing or distressing effects.
Rotary Drum Dyeing Machines: Similar to washing machines, tumbling garments in dye liquor for even coloration.
2. According to Operation Mode
Batch Dyeing Machines
Process materials in discrete batches, suitable for small to medium production runs and frequent color changes.
E.g., cheese dyeing machines, jiggers, and most garment dyeing systems.
Continuous Dyeing Machines
Feed materials through a continuous dyeing line for high-volume production.
Pad-Batch Dyeing Machines: Pad fabric with dye, then roll it for batch-wise fixation, balancing efficiency and color variety.
Pad-Steam Dyeing Machines: Combine padding with steam fixation for rapid processing, ideal for cotton and cellulosic fibers.
3. According to Dyeing Medium
Water-Based Dyeing Machines
The most common type, using water as the dye solvent.
Equipped with heating systems to control dyeing temperature (e.g., jet dyeing machines for reactive dyes).
Non-Aqueous Dyeing Machines
Use alternative solvents (e.g., supercritical CO₂ or organic solvents) for eco-friendly dyeing.
Supercritical CO₂ Dyeing Machines: Reduce water usage and eliminate chemical waste, suitable for synthetic fibers.
4. According to Pressure and Temperature
Atmospheric Dyeing Machines
Operate at normal pressure (1 atm), suitable for dyes that fix at low temperatures (e.g., acid dyes for wool).
High-Pressure Dyeing Machines
Operate at pressures above 1 atm (up to 3 atm) and temperatures up to 140°C, ideal for polyester dyeing with disperse dyes to ensure dye penetration.
5. Specialized Dyeing Machines
Print-Dyeing Combined Machines
Integrate dyeing and printing functions for patterned fabrics.
Eco-Friendly Dyeing Systems
Incorporate low-liquor ratio technology or recycling systems to reduce water and chemical consumption.
Digital Dyeing Machines
Use inkjet technology for precise color application, suitable for customized or small-batch production.
