| ブランド名: | Alees |
| モデル番号: | AS-241D |
| MOQ: | 1 |
| 価格: | USD5000-250000 |
| 支払い条件: | L/C |
| 供給能力: | 月額50セット |

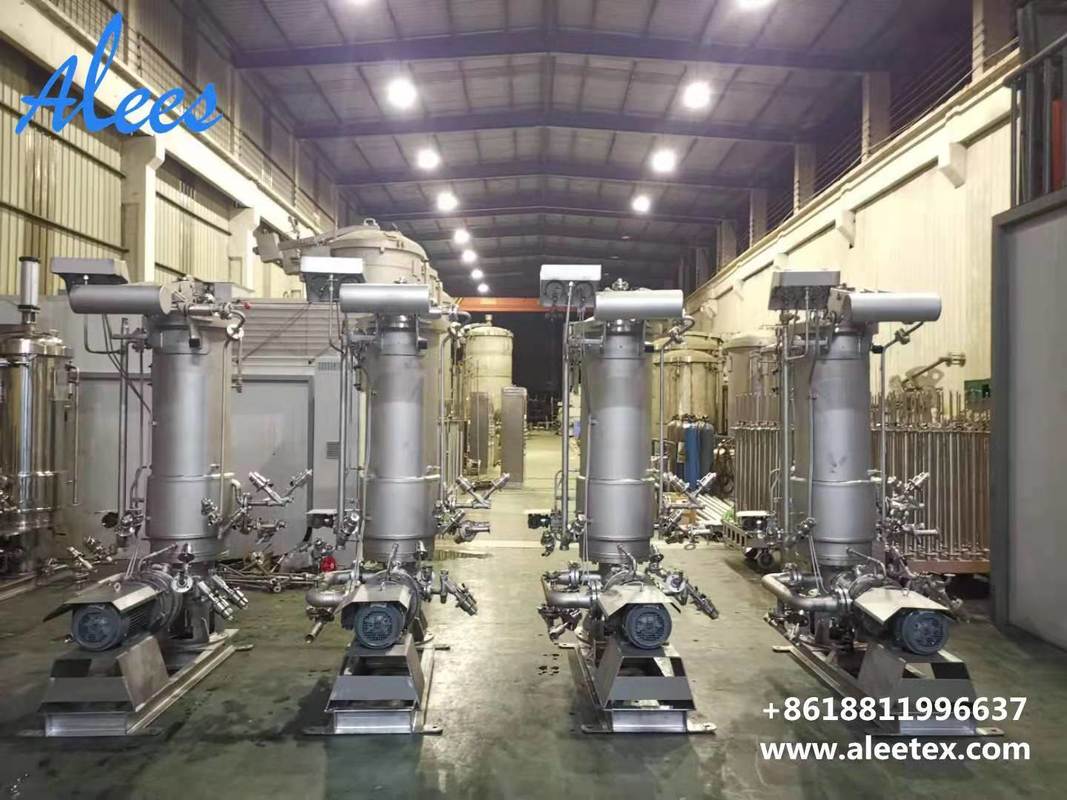

The AS241D series is an energy-saving package yarn dyeing machine featuring a 90° flat-plate reversal device, high-efficiency tube heat exchanger, and innovative centrifugal pump design, achieving a low 1:5 liquor ratio. More compact than conventional models, it offers lower bath ratios, reduced energy use and operating costs. Suitable for high-temperature dyeing of polyester/blended yarns and normal-temperature processing of cotton, acrylic and wool yarns.With interchangeable carriers, it handles various materials including nylon yarn, hank yarn, tape cords and loose fibers, providing versatile dyeing solutions for diverse textile applications.
| Model | Main Tank diameter(MM) | Total no. Of spindle | Number Of Layers | Maximum Capacity(KG) | Main Pump Power (KW) | Lifting height (MM) |
|---|---|---|---|---|---|---|
| AS-241D-40 | 400 | 3 | 4 | 12 | 4 | 2900 |
| AS-241D-43 | 430 | 4 | 6 | 24 | 5.5 | 3650 |
| AS-241D-55 | 500 | 6 | 7 | 42 | 7.5 | 4050 |
| AS-241D-65 | 530 | 8 | 7 | 56 | 11 | 4350 |
| AS-241D-65 | 650 | 8 | 9 | 72 | 15 | 5000 |
| AS-241D-85 | 750 | 18 | 7 | 126 | 15 | 4500 |
| AS-241D-105 | 850 | 24 | 7 | 168 | 18.5 | 4600 |
| AS-241D-105 | 1050 | 24 | 9 | 216 | 22 | 5250 |
| AS-241D-110 | 1100 | 30 | 9 | 270 | 30 | 5300 |
| AS-241D-140 | 1200 | 46 | 9 | 414 | 37 | 5400 |
| AS-241D-140 | 1400 | 46 | 10 | 460 | 45 | 5750 |
| AS-241D-170 | 1500 | 72 | 9 | 648 | 55 | 5850 |
| AS-241D-170 | 1700 | 72 | 12 | 864 | 75 | 6750 |
| AS-241D-186 | 1860 | 90 | 12 | 1080 | 90 | 6850 |
| AS-241D-186 | 1860 | 90 | 14 | 1260 | 110 | 7600 |
| AS-241D-200 | 2000 | 108 | 10 | 1080 | 90 | 6400 |
| AS-241D-200 | 2000 | 108 | 12 | 1296 | 110 | 7000 |
| AS-241D-226 | 2260 | 134 | 18 | 2412 | 160 | 9250 |
| AS-241D-256 | 2560 | 164 | 19 | 3116 | 220 | 9650 |
|
Standard package yarn diameter: 165-170mm Standard dyeing bobbin length: 165-170mm Spacing of spindles:170mm Weight of per package yarn: approach 1KG. |
||||||
