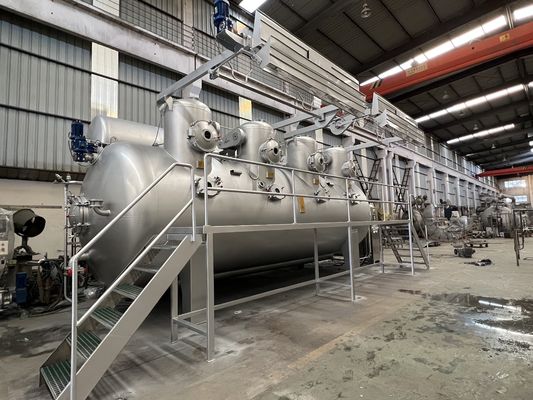

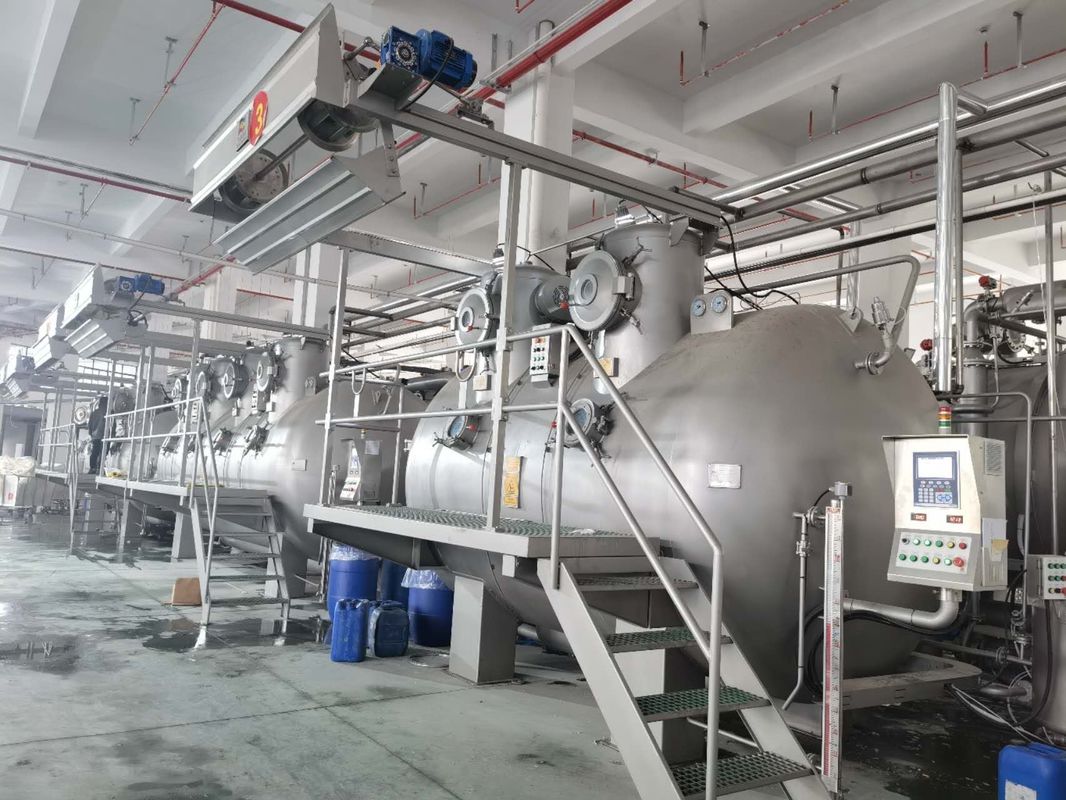

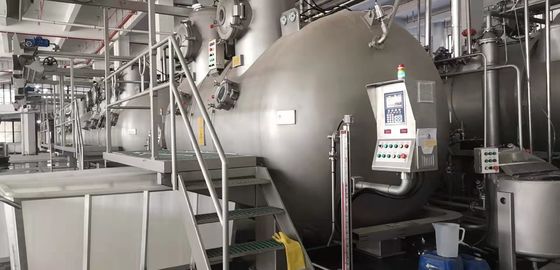

HT Low Consumption Energy Saving Liquid Flow Dyeing Machine

Name: HT Low Consumption Energy Saving Liquid Flow Dyeing Machine
Brand: ALEETEX(CHINA) TECHNOLOGY CO.,LTD
SKU: AS-Towel
Price: 127,500.00 USD
Availability: InStock

Brand Name:	Alees
Model Number:	AS-Towel
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

O Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

low consumption overflow dyeing machine

energy saving overflow dyeing machine

Product Description

Introduction

AS-Towel series is a groundbreaking U-flow dyeing machine designed to transform textile processing with its ultra-low liquor ratio of 1:5-1:6. By integrating an innovative dye circulation system and intelligent fabric handling technology, it achieves exceptional dyeing uniformity while significantly reducing resource consumption. This advanced system cuts additive usage by over 60% and reduces dyestuff requirements by 5%-10% through precise chemical dosing controls. Environmental performance is equally remarkable, with a 60% reduction in wastewater discharge and substantial decreases in water, energy, and steam consumption compared to conventional dyeing systems.

Technical Parameters

-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6

Model and Specifications

Model	Capacity (kg)	Dimension (mm) *(LWH)*	General Power (kw)
AS-Towel-1T	250-300	367048503470	5.5
AS-Towel-2T	500-600	469448503648	11
AS-Towel-3T	750-900	622048803545	18.5
AS-Towel-4T	1000-1200	727648803748	30
AS-Towel-5T	1250-1500	938447883748	45
