Overflow Dyeing Machine
Created with Pixso.

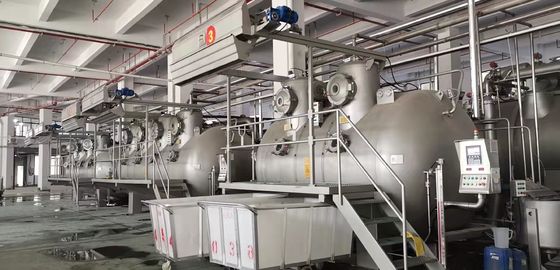

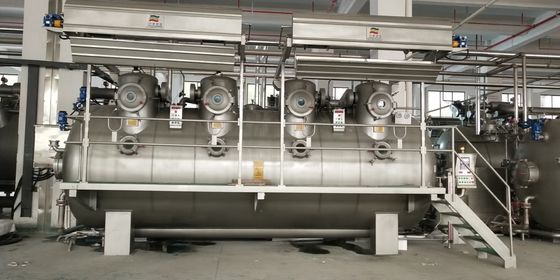

Automatic Stainless Steel U Type Fabric Dyeing Machine

Automatic Stainless Steel U Type Fabric Dyeing Machine

Brand Name: Alees
Model Number: AS-Towel
MOQ: 1
Price: USD5000-250000
Supply Ability: 50 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Shape:
O Shape
Meterial:
SUS 316L
Voltage:
380V-50HZ
Controller:
SETEX747 / AS9000A(China) / EAS-PCT310
Control System:
Full Automatic

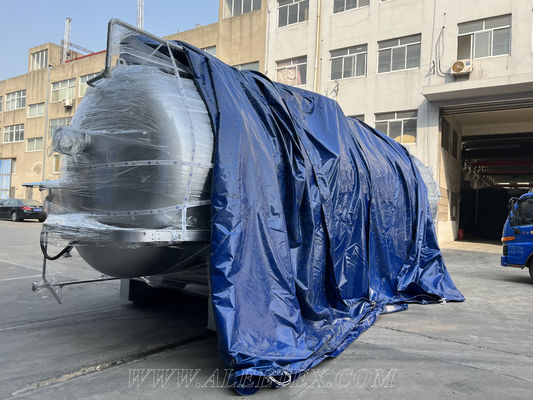

Packaging Details:
Wooden Case/Plastic Film
Supply Ability:
50 sets per month
Highlight:

380v overflow dyeing machine

,

50hz overflow dyeing machine

Product Description

Technical Parameters


-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

                        100℃-130℃ about 2.5℃/min

                        (dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

                        100℃-85℃average2℃/min

                        (cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6



Model and Specifications


Model

Capacity (KG)

Dimension

Main Pump Power (KW)

L*W*H (MM)

AS-Towel-1T

250-300

3500*5150*3900

11

AS-Towel-2T

500-600

4900*6000*3900

18.5

AS-Towel-3T

750-900

8500*6000*4150

30

AS-Towel-4T

1000-1200

10000*6000*4150

37

AS-Towel-6T

1250-1500

14000*6500*4150

45
