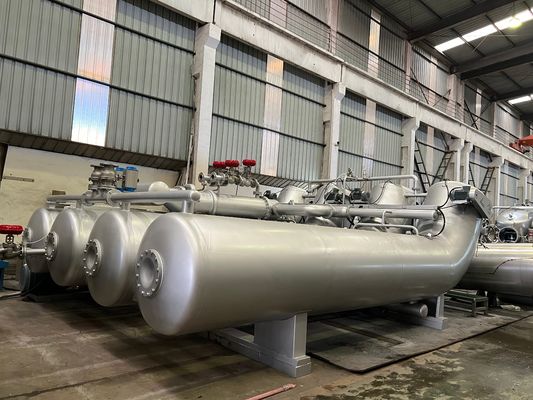

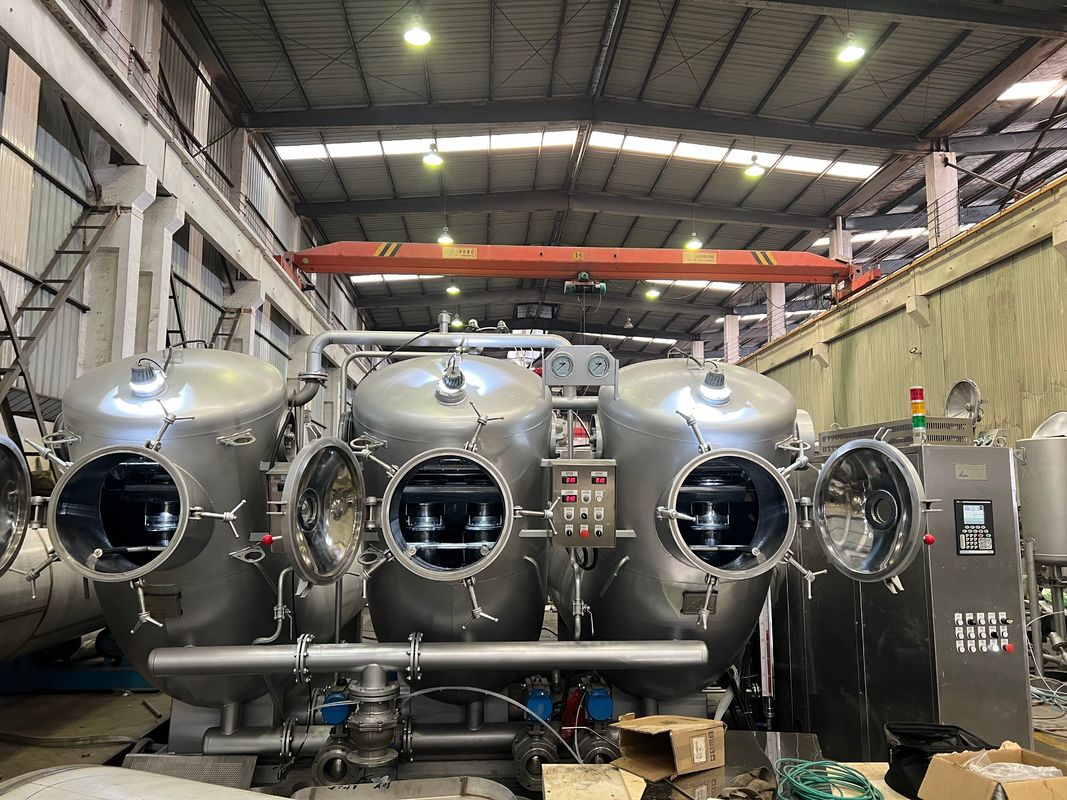

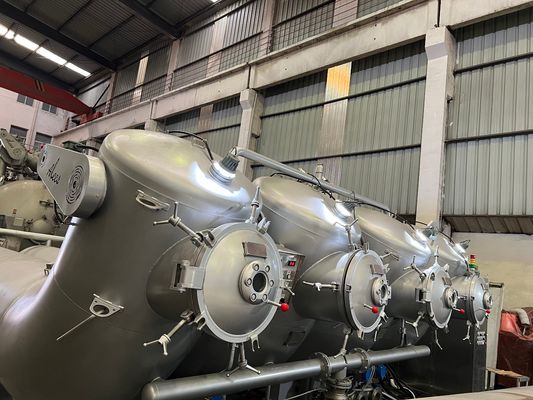

High Temperature Low Liquor Ration Full Automatic Control System Rapid Dyeing Machine

High Temperature Low Liquor Ration Full Automatic Control System Rapid Dyeing Machine

Brand Name:	Alees
Model Number:	AS-636
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

L Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Nozzle Size:

65/90/133

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

rapid long tube jet dyeing machine

high temperature long tube jet dyeing machine

Product Description

Introction

AS636 series dyeing machine handles both standard knitted and elastic fabrics including cotton, viscose, polyester, and nylon elastic variants. Compatible with overflow jet flow technology, it processes fabrics from 50-600g/m². Its composite variable-diameter guide tube minimizes tension while preventing warp crease, and the optimized short-cloth-groove design maintains low liquor ratios for efficient operation. The low-profile, low-tension configuration reduces post-dye shrinkage and ensures consistent finished weights. Constructed with high-grade European/Japanese SUS316/316L stainless steel, the heavy-duty machine body and heat exchanger deliver exceptional corrosion resistance and durability.Sandblasting on the whole machine surface.

Technical Parameters

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Model	No. Of Tubes	Max. Capacity (KG)	Dimension (mm) *(LWH)*	General Power (KW)
AS636-25	1	18-25	524014502730	9.4
AS636-50	1	35-50	635014502730	10.2
AS636-75	1	50-75	683015302730	10.2
AS636-100	1	70-100	580017003080	13.5
AS636-250	1	175-250	1080017003080	18
AS636-500	2	350-500	1080031003080	36
AS636-1000	4	700-1000	1080060503180	63.5
