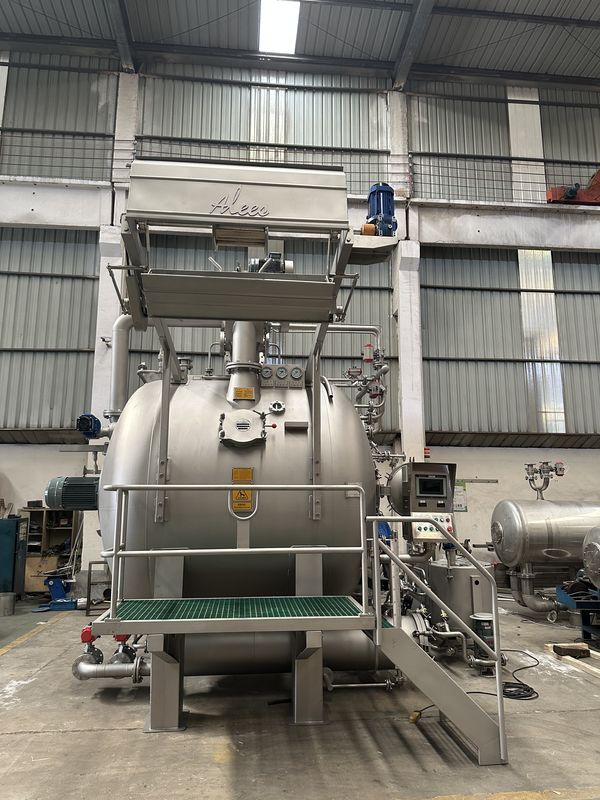

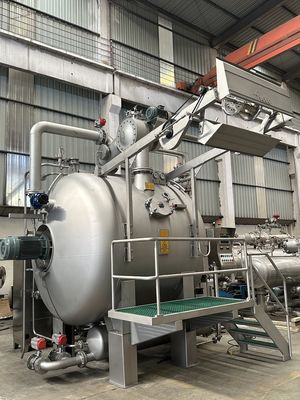

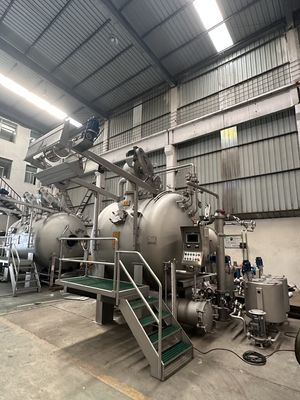

Multi Flow Fabric Sample Dyeing Machine HTHP High Performance

Multi Flow Fabric Sample Dyeing Machine HTHP High Performance

Brand Name:	Alees
Model Number:	AS Multiflow mini / AS Airflow mini
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

O Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SETEX797 / AS12(China) / SEDOMAT 6007 / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

Multi Flow Fabric Sample Dyeing Machine

Multi Flow hthp dyeing machine

HTHP Fabric Sample Dyeing Machine

Product Description

Introduction

AS-MULTI-FLOW series of high temperature multi-flow flow full mode dyeing machine (pure air flow dyeing mode, pure over flow dyeing mode, air-over flow mixed dyeing mode) is a new generation with a wide range of suitable dyeing cloth, low production cost and first-class quality of dyed fabric. A carefully designed circulation system of airflow and liquid flow superposition is used to make the fabric run smoothly at very low bath ratio 1:3. Fabric lifting system: the perfect fit of double stage nozzle and guide pipe makes the fabric running speed up to 400 m / min, suitable for dyeing process requirements of different fabrics.

Technical Parameters

1.main cylinder

-Maximum fabric speed: 400 m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃~100℃ average 5℃/ min ;100℃~130

(dry saturated steam pressure 0.7 MPa)

-Cooling rate: 130℃~100℃ average 3/ min ;100℃~85℃ average 2/ min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:3

2.multi-function reserve cylinder (optional)

-maximum operating temperature: 85℃

-Maximum working pressure: atmospheric pressure

-Heating rate: 25℃~85℃ average 4/ min

(dry saturated steam pressure 0.7 MPa)

-Capacity: about 1:4~5 capacity of the main cylinder

Model and Specifications

Model	Capacity (KG)	Dimension(mm) *(LWH)*	General Power (KW)
AS-Multi-flow-Mini-25KG	25	300033003300	20.55
AS-Multi-flow-Mini-50KG	50	329035603410	20.55
AS-Multi-flow-Mini-100KG	100	360037703410	24.3
AS-MUITI-FLOW-1T	250	516742864410	24.95
AS-MUITI-FLOW-2T	500	634642864410	44.5
AS-MUITI-FLOW-3T	750	840042864855	66.3
AS-MUITI-FLOW-4T	1000	990043004855	109.5
AS-MUITI-FLOW-6T	1500	1290043004855	135.9
