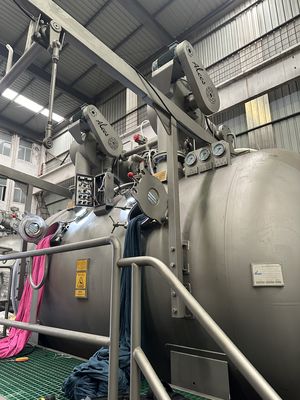

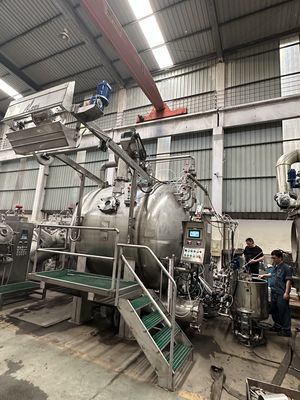

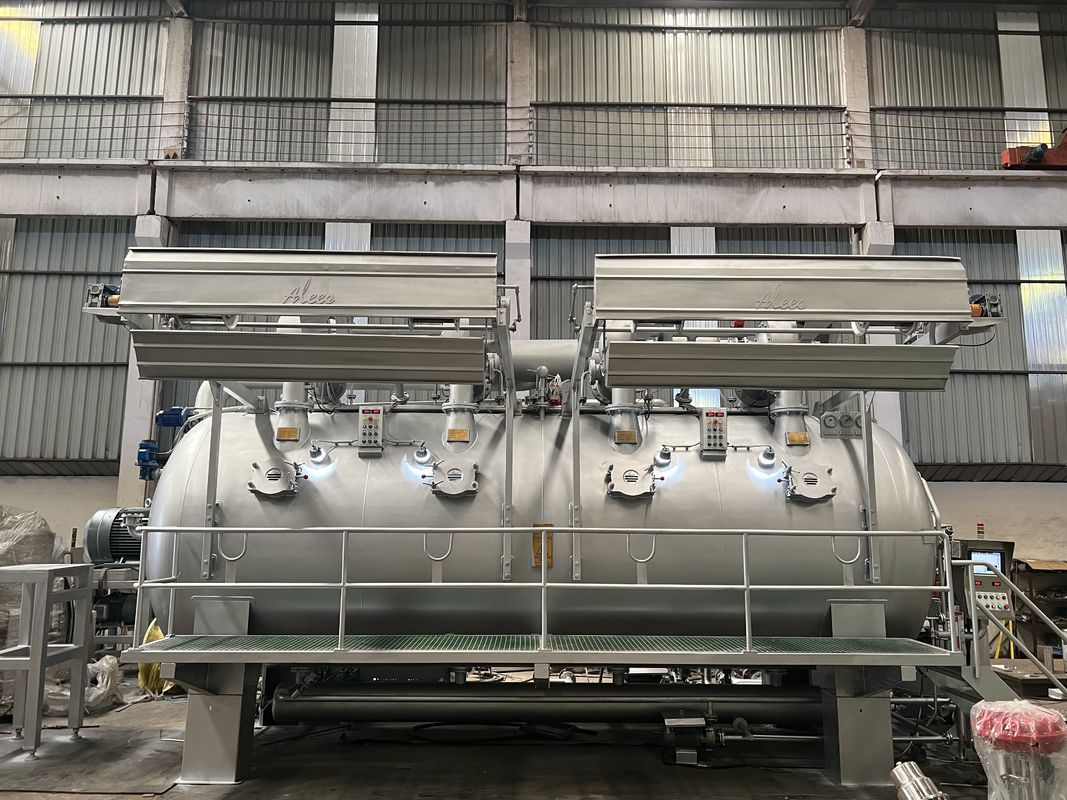

380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine

380V Airflow Dyeing Machine Multiflow HT High Temperature Rope Dyeing Machine

Brand Name:	Alees
Model Number:	AS Multi-Flow / AS Airflow
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

O Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Nozzle Size:

110

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

380V Airflow Dyeing Machine

380V High Temperature Rope Dyeing Machine

Multiflow High Temperature Rope Dyeing Machine

Product Description

Introduction

AS-MULTI-FLOW series of high temperature multi-flow flow full mode dyeing machine (pure air flow dyeing mode, pure over flow dyeing mode, air-over flow mixed dyeing mode) is a new generation with a wide range of suitable dyeing cloth, low production cost and first-class quality of dyed fabric. A carefully designed circulation system of airflow and liquid flow superposition is used to make the fabric run smoothly at very low bath ratio 1:3. Fabric lifting system: the perfect fit of double stage nozzle and guide pipe makes the fabric running speed up to 400 m / min, suitable for dyeing process requirements of different fabrics.

Technical Parameters

main cylinder
- Maximum fabric speed: 400 m/min
- Maximum working pressure: Mpa 0.4
- Maximum operating temperature: 135℃
- Heating rate: 25℃~100℃ average 5℃/ min ;100℃~130 (dry saturated steam pressure 0.7 MPa)
- Cooling rate: 130℃~100℃ average 3/ min ;100℃~85℃ average 2/ min (cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)
- Liquor Ratio: 1:3
multi-function reserve cylinder (optional)
- maximum operating temperature: 85℃
- Maximum working pressure: atmospheric pressure
- Heating rate: 25℃~85℃ average 4/ min (dry saturated steam pressure 0.7 MPa)
- Capacity: about 1:4~5 capacity of the main cylinder

Model and Specifications

Model	Capacity (KG)	Dimension	Main Pump Power (KW)	Blower Power (KW)
Model	Capacity (KG)	LWH (MM)	Main Pump Power (KW)	Blower Power (KW)
AS-Multi-Flow-Mini-25KG	25	300033003300	4	11
AS-Multi-Flow-Mini-50KG	50	330036003450	4	11
AS-Multi-Fow-Mini-100KG	100	350034003800	4	15
AS-Multi-Flow-Mini-200KG	200	440038003800	4	15
AS-Multi-Flow-1T	250	450052004000	5.5	18.5
AS-Multi-Flow-2T	500	590051004200	11	37
AS-Multi-Flow-3T	750	640051004200	11	45
AS-Multi-Flow-4T	1000	980051004300	11	75
AS-Multi-Flow-6T	1500	1260051004300	18.5	90
