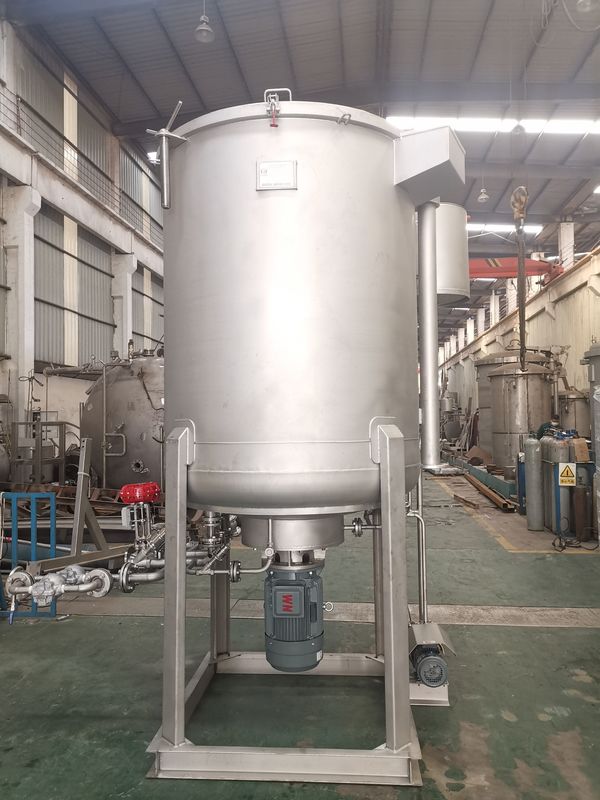

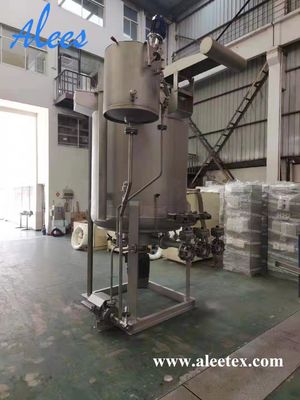

Low Consumption Hthp Yarn Dyeing Machine Advanced Vertical Dyeing Machine

Name: Low Consumption Hthp Yarn Dyeing Machine Advanced Vertical Dyeing Machine
Brand: ALEETEX(CHINA) TECHNOLOGY CO.,LTD
SKU: AS-QRS
Price: 127,500.00 USD
Availability: InStock

Brand Name:	Alees
Model Number:	AS-QRS
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

Vertical Type

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

Low Consumption Hthp Yarn Dyeing Machine

Low Consumption Vertical Dyeing Machine

Advanced Hthp Yarn Dyeing Machine

Product Description

Introction

AS-QRS series is Suitable for dyeing various types of loose fibers, especially cashmere, wool, cotton, wool, silk,acrylic, etc. and their blended products.It could finish several dyeing processes such as refining, bleaching, dyeing and pliability etc.

Technical Parameters

-Maximum operating temperature: 135℃

-Heating rate: average 4℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: average 2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

Model and Specifications

Model	Capacity (KG)	Dimension	Main Pump Power (KW)	Lifting height (MM)
Model	Capacity (KG)	*LWH (MM)*	Main Pump Power (KW)	Lifting height (MM)
AS-QRS-50	50	160015002550	5.5	4565
AS-QRS-100	100	230019002700	5.5	5268
AS-QRS-200	200	230019503300	7.5	5880
AS-QRS-300	300	260022003700	18.5	6380
AS-QRS-500	500	300025004000	22	6597
