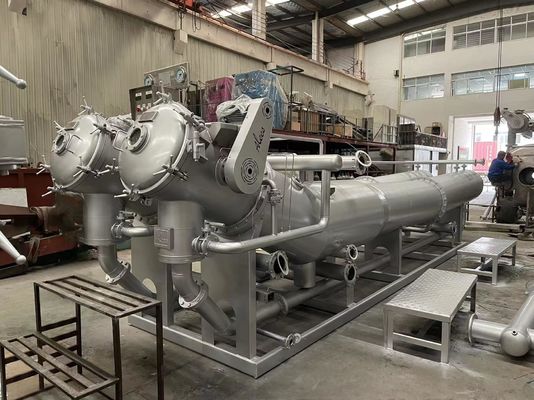

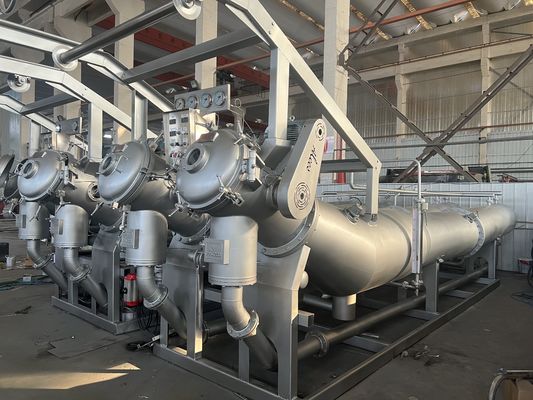

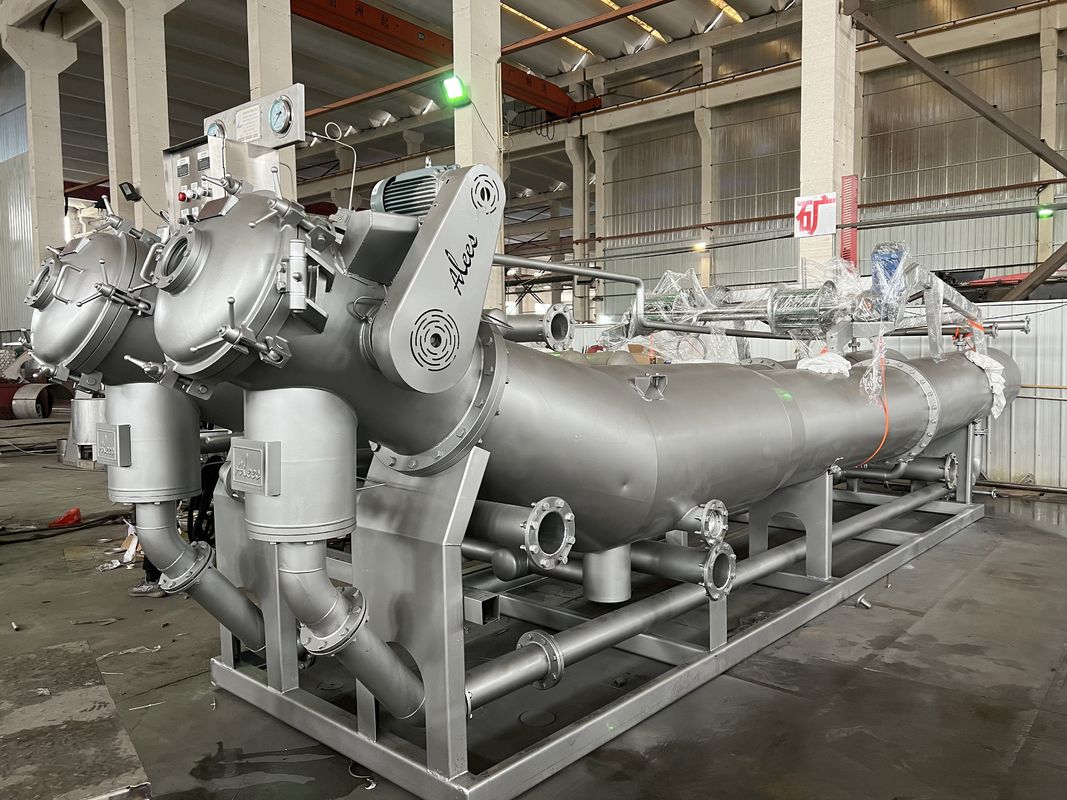

Overflow Woven Fabric Dyeing Machine Adjustable With PLC Based Automation

Overflow Woven Fabric Dyeing Machine Adjustable With PLC Based Automation

Brand Name:	Alees
Model Number:	AS-631
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

L Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SEDO6007 / SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

Overflow Woven Fabric Dyeing Machine

Overflow high pressure dyeing machine

Adjustable Woven Fabric Dyeing Machine

Product Description

Introduction

The AS631 dyeing machine is primarily designed for processing woven fabrics, including natural and synthetic fibers, blended fibers such as T/C, T/R, and T/W, as well as high value-added microfibers and composite fibers. With its large-capacity design, the machine ensures smooth operation for both lightweight and heavyweight fabrics while maintaining an efficient low liquor ratio ranging from 1:6 to 1:8. The system incorporates a large-flow nozzle that works in conjunction with a high-lift main pump to enhance uniform dyeing effects through high-speed circulation. For improved operational efficiency, the machine features a special guide cloth device at the tail section that optimizes fabric arrangement and minimizes production stoppages, ensuring continuous and stable running throughout the dyeing process.

Technical Parameters

-Maximum fabric speed: 600-700 m/min
-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Model	No. Of Tubes	Capacity (KG)	Dimension (mm) *(LWH)*	General Power (KW)
AS631-100B	1	100	880018002750	15
AS631-250B	1	250	1042018003200	18.5
AS631-500B	2	500	1042027903200	30
AS631-1000B	4	1000	1042055503200	55
