700m/Min Polyester Cotton Fabric Dyeing Machine Energy Saving Stable With SEDO6007 Controller

700m/Min Polyester Cotton Fabric Dyeing Machine Energy Saving Stable With SEDO6007 Controller

Brand Name:	Alees
Model Number:	AS-631
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

L Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SEDO6007 / SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

700m/Min Polyester Cotton Fabric Dyeing Machine

700m/Min high temperature dyeing machine

Stable Polyester Cotton Fabric Dyeing Machine

Product Description

Introduction

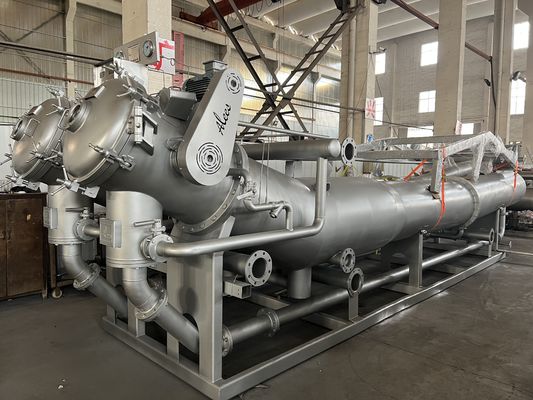

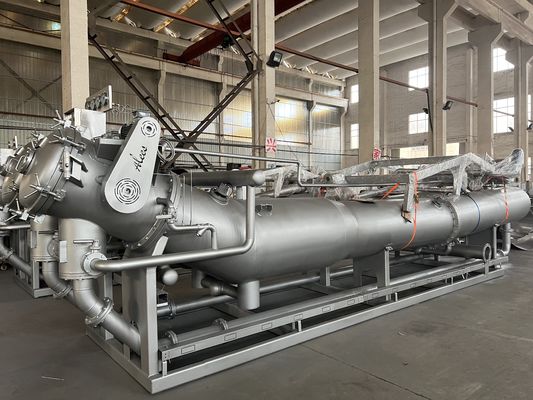

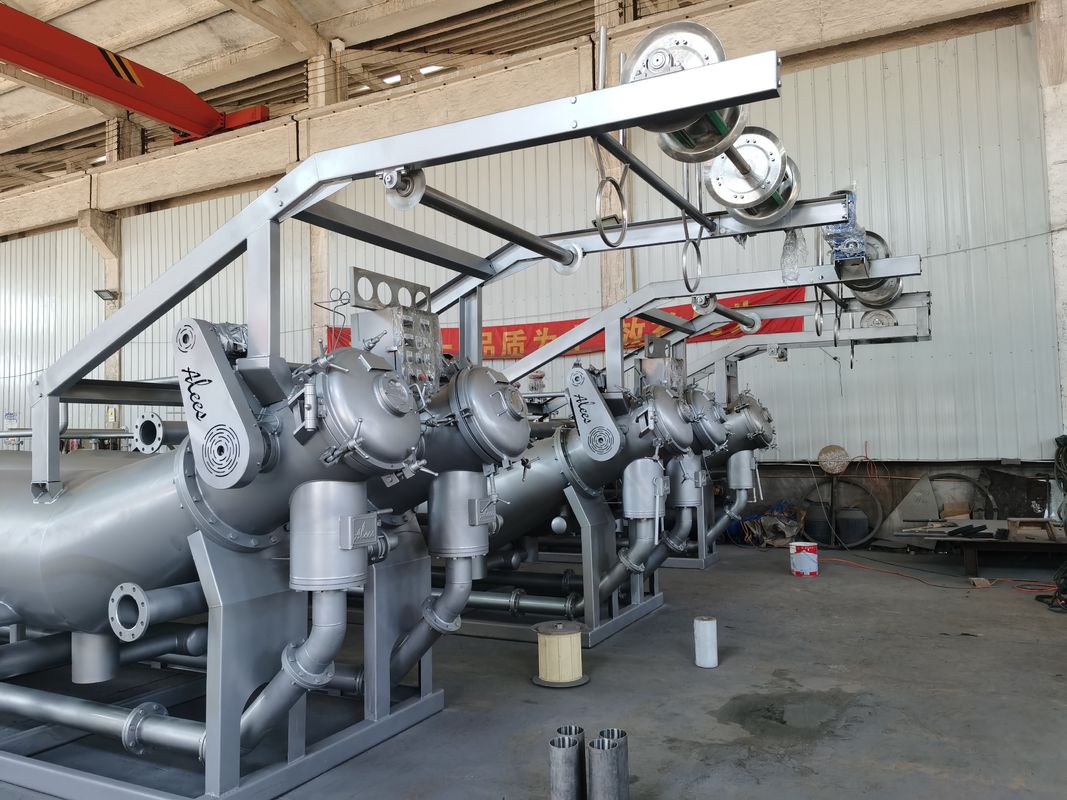

The AS631 dyeing machine is primarily designed for processing woven fabrics, including natural and synthetic fibers, blended fibers such as T/C, T/R, and T/W, as well as high value-added microfibers and composite fibers. With its large-capacity design, the machine ensures smooth operation for both lightweight and heavyweight fabrics while maintaining an efficient low liquor ratio ranging from 1:6 to 1:8. The system incorporates a large-flow nozzle that works in conjunction with a high-lift main pump to enhance uniform dyeing effects through high-speed circulation. For improved operational efficiency, the machine features a special guide cloth device at the tail section that optimizes fabric arrangement and minimizes production stoppages, ensuring continuous and stable running throughout the dyeing process.

Technical Parameters

-Maximum fabric speed: 600-700 m/min
-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Model	No. Of Tubes	Capacity (KG)	Dimension	Main Pump Power (KW)
Model	No. Of Tubes	Capacity (KG)	*LWH (MM)*	Main Pump Power (KW)
AS-631-250B	1	250	1800×10250×3250	18.75
AS-631-500B	2	500	2800×10250×3250	41.5
AS-631-1000B	4	1000	5600×10250×3250	65.5
