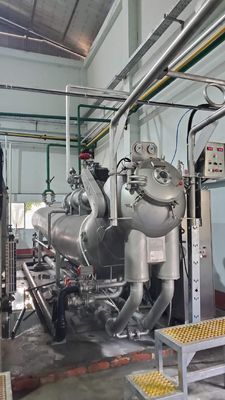

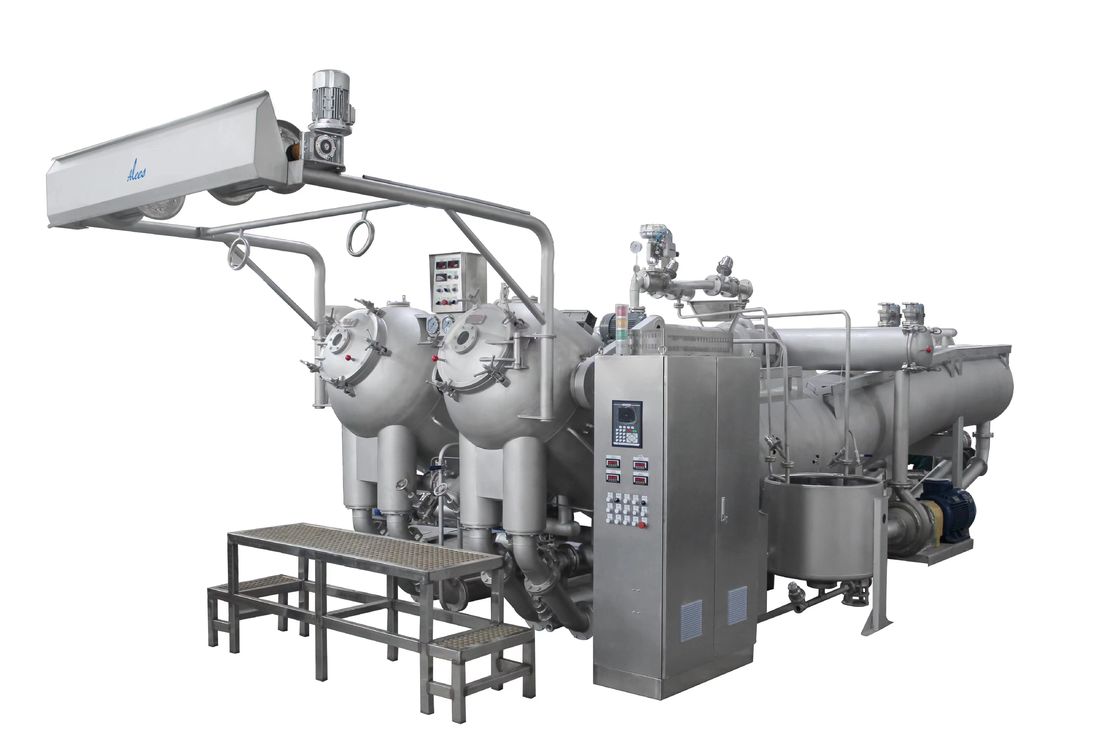

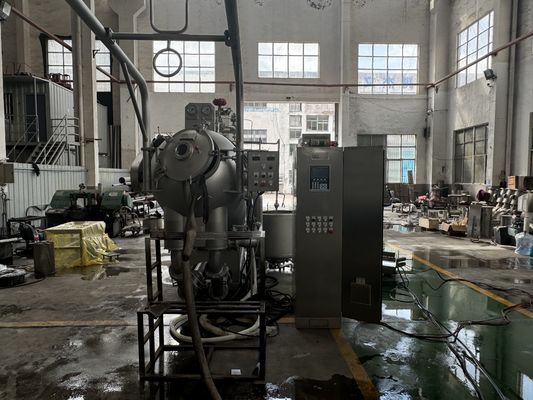

Automatic Woven Fabric Jet Dyeing Machine Energy Saving With SETEX747 Controller

Automatic Woven Fabric Jet Dyeing Machine Energy Saving With SETEX747 Controller

Brand Name:	Alees
Model Number:	AS-656
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

L Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SEDO6007 / SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

Automatic Woven Fabric Jet Dyeing Machine

Automatic cotton dyeing machine

Energy Saving cotton dyeing machine

Product Description

Introduction

AS656 series dyeing machine utilizes high-pressure sprayed water flow technology with adjustable pressure up to 3kg/cm². This system is specifically designed for processing various non-splitting fabrics including high-count synthetics, technical textiles, knits, wovens and specialty weaves. The machine demonstrates excellent compatibility with diverse fiber compositions ranging from pure synthetics to complex blended materials.For delicate fabric processing, the water pressure can be precisely adjusted within the 0.5-1kg/cm² range to accommodate resilient and low-tension materials. This pressure adjustment capability ensures optimal dyeing results while maintaining fabric integrity throughout the treatment process.

Technical Parameters

-Maximum fabric speed: 600-700 m/min
-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Model	No. Of Tubes	Capacity (KG)	Dimension	Main Pump Power (KW)
Model	No. Of Tubes	Capacity (KG)	*LWH (MM)*	Main Pump Power (KW)
AS-631-250B	1	250	1800×10250×3250	18.75
AS-631-500B	2	500	2800×10250×3250	41.5
AS-631-1000B	4	1000	5600×10250×3250	65.5
