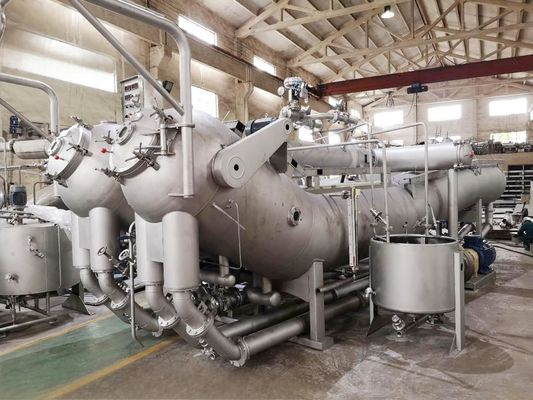

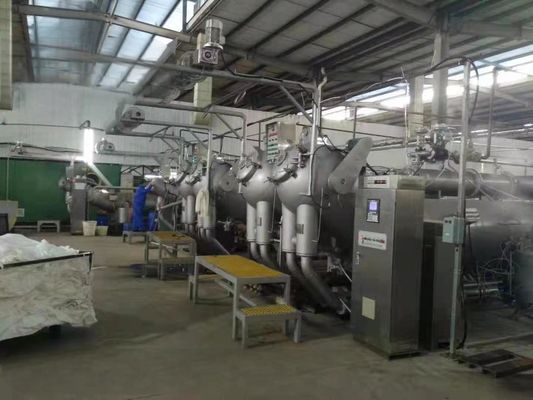

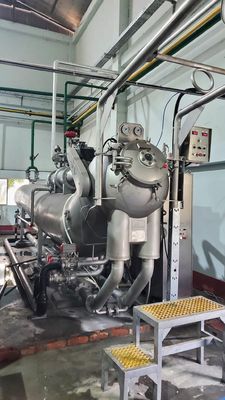

HTHP High Capacity Jet Dyeing Machine Continuous Dyeing Machine With Long Tube Dual Winch

HTHP High Capacity Jet Dyeing Machine Continuous Dyeing Machine With Long Tube Dual Winch

Brand Name:	Alees
Model Number:	AS-656
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

L Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SEDO6007 / SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

HTHP High Capacity Jet Dyeing Machine

HTHP Continuous Dyeing Machine

Long Tube Continuous Dyeing Machine

Product Description

Introduction

AS656 series dyeing machine utilizes high-pressure sprayed water flow technology with adjustable pressure up to 3kg/cm². This system is specifically designed for processing various non-splitting fabrics including high-count synthetics, technical textiles, knits, wovens and specialty weaves. The machine demonstrates excellent compatibility with diverse fiber compositions ranging from pure synthetics to complex blended materials.For delicate fabric processing, the water pressure can be precisely adjusted within the 0.5-1kg/cm² range to accommodate resilient and low-tension materials. This pressure adjustment capability ensures optimal dyeing results while maintaining fabric integrity throughout the treatment process.

Technical Parameters

-Maximum fabric speed: 600-700 m/min
-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Model	Cloth Capacity(kg)	No.of Tubes	Power capacity(kw)	Dimension (LWH)
AS656-50	35-50	1	11.6	4850x1350x2350
AS656-100	70-100	1	15.1	6200x1350x2350
AS656-500	400-500	1	23.7	9050x1850x2450
AS656-1000	800-1000	2	52.4	9050x3100x2450
