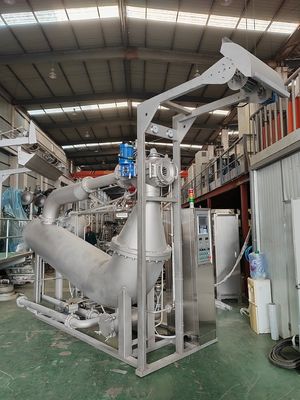

HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel

HTHP Medium Batch Fabric Dyeing Machine L Shape With Corrosion Resistant Stainless Steel

Brand Name:	Alees
Model Number:	AS 630
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

L Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

Corrosion Resistant Fabric Dyeing Machine

Corrosion Resistant piece dyeing machine

L Shape Fabric Dyeing Machine

Product Description

Introduction

AS630's body and all parts in contact with the dyeing liquid are constructed from highly corrosion-resistant stainless steel. A high-efficiency stainless steel centrifugal pump ensures optimized dyeing liquid circulation, while the lifting roller is inverter-controlled for precise operation.The system includes a dyestuff tank equipped with a dosing pump, valve, and an efficient dyeing liquid circulation system. A liquid level indicator with a magnetic control water level sensing device provides accurate monitoring. Additionally, a high-efficiency heat exchanger enhances thermal performance.Water inlet, discharge, and flow cleaning are all managed by pneumatic valves for reliable and automated control.

Technical Parameters

-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6

Model and Specifications

Model	Capacity (kg)	Dimension (mm) *(LWH)*	General Power (kw)
AS630-5	4-6	140011701800	5.9
AS630-15	8-15	245010502060	7.7
AS630-30	20-30	375012002200	9.3
AS630-60	40-60	460014002650	11.2
AS630-120	80-120	620017002650	11.2
