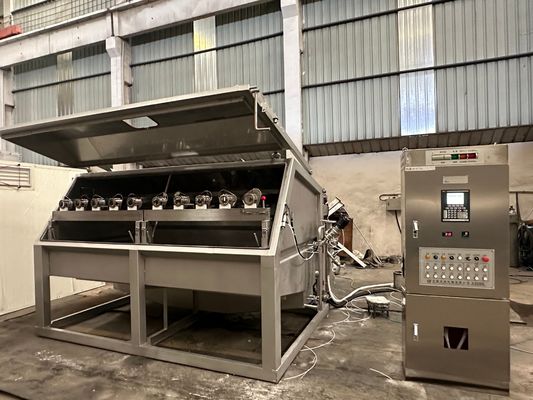

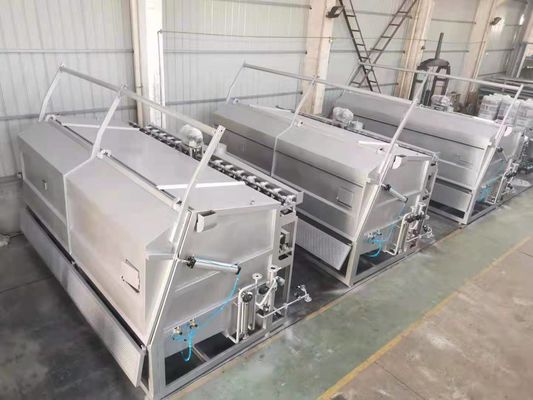

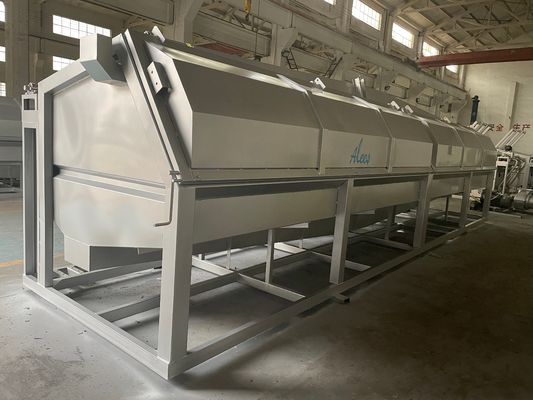

Low Liquor Ration Energy Saving Spray Type Hank Yarn Dyeing Machine

Low Liquor Ration Energy Saving Spray Type Hank Yarn Dyeing Machine

Brand Name:	Alees
Model Number:	AS SH
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Meterial:

SUS 316L

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Voltage:

380V-50HZ

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

spray type hank yarn dyeing machine

380v hank yarn dyeing machine

Product Description

Introduction

AS-SH series efficiently handles bleaching, refining, dyeing and washing of diverse yarns (spun yarn, rayon, mercerized cotton, silk, cashmere, etc.). Its anti-cavitation system incorporates an energy-efficient, high-capacity pump that prevents water insufficiency and ensures consistent dyeing quality at high temperatures.The integrated weir-flow injection pipe prevents yarn tangling and simplifies unloading, minimizing material loss. An intelligent water regulator automatically optimizes flow according to yarn specifications and load size. Featuring an advanced 1:10-15 bath ratio design, the machine significantly reduces both water consumption and operational costs.

Technical Parameters

-Maximum operating temperature: 98℃

-Temperature accelerating rate: 25℃-98℃ about 4℃/minute

(Saturated vapor pressure: Mpa 0.7)

(7kg/cm2dried satured steam manometer)

Model and Specifications

Model	No.of tubes	Arm Length (mm)	Capacity (kg)	Dimension (mm) (LWH)	Main pump power(kw)
AS-SH-1-650	1	650	4.5	13101950 2020	1.1
AS-SH-2-650	2	650	9	154019502020	1.1
AS-SH-2-1200	2	1200	16	157025002020	1.5
AS-SH-4-1200	4	1200	32	213023002020	3
AS-SH-6-1200	6	1200	50	258023502020	4
AS-SH-10-1500	10	1500	110	374026802020	7.5
AS-SH-20-1500	20	1500	220	674027302020	18.5
AS-SH-30-1500	30	1500	330	970028802120	22
AS-SH-40-1500	40	1500	440	1285028802220	30
AS-SH-50-1500	50	1500	550	1674030902320	37
AS-SH-60-1500	60	1500	660	1881030902320	45
AS-SH-80-1500	80	1500	880	2490030902320	55
