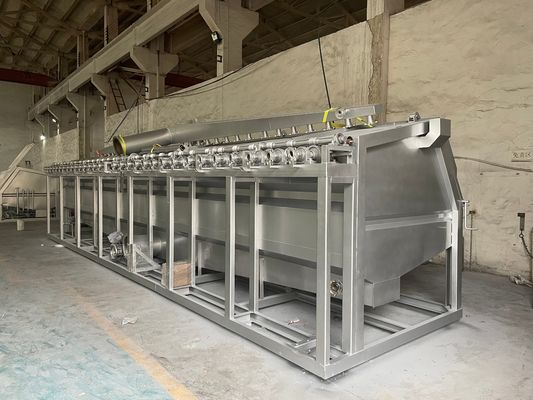

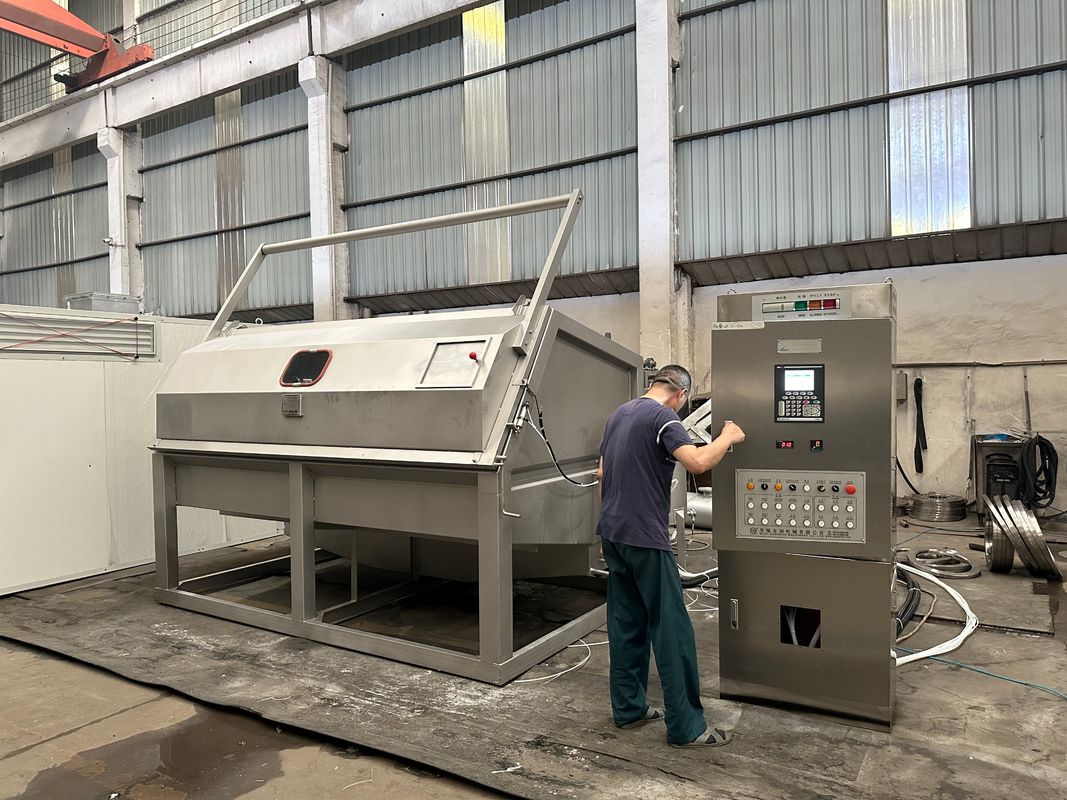

Low Consumption Hank Yarn Dyeing Machine Energy Saving With SETEX747 Controller

Low Consumption Hank Yarn Dyeing Machine Energy Saving With SETEX747 Controller

Brand Name:	Alees
Model Number:	AS SH
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Meterial:

SUS 316L

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Voltage:

380V-50HZ

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

Low Consumption Hank Yarn Dyeing Machine

Low Consumption industrial dyeing machine

Energy Saving Hank Yarn Dyeing Machine

Product Description

Introduction

AS-SH series efficiently handles bleaching, refining, dyeing and washing of diverse yarns (spun yarn, rayon, mercerized cotton, silk, cashmere, etc.). Its anti-cavitation system incorporates an energy-efficient, high-capacity pump that prevents water insufficiency and ensures consistent dyeing quality at high temperatures.The integrated weir-flow injection pipe prevents yarn tangling and simplifies unloading, minimizing material loss. An intelligent water regulator automatically optimizes flow according to yarn specifications and load size. Featuring an advanced 1:10-15 bath ratio design, the machine significantly reduces both water consumption and operational costs.

Technical Parameters

-Maximum operating temperature: 98℃

-Temperature accelerating rate: 25℃-98℃ about 4℃/minute

(Saturated vapor pressure: Mpa 0.7)

(7kg/cm2dried satured steam manometer)

Model and Specifications

Model	No.of Arms	Arm Length (MM)	Capacity (KG)	Dimension	Main Pump Power (KW)
Model	No.of Arms	Arm Length (MM)	Capacity (KG)	*LWH (MM)*	Main Pump Power (KW)
AS-SH-1-650	1	650	4.5	131019502020	1.1
AS-SH-2-600	2	650	8	154019502020	1.5
AS-SH-2-1200	2	1200	16	157025002020	2.2
AS-SH-4-1200	4	1200	32	213023002020	4
AS-SH-6-1200	6	1200	50	258023502020	5.5
AS-SH-10-1500	10	1500	110	374026802020	7.5
AS-SH-20-1500	20	1500	220	674027302020	15
AS-SH-30-1500	30	1500	330	970028802120	18.5
