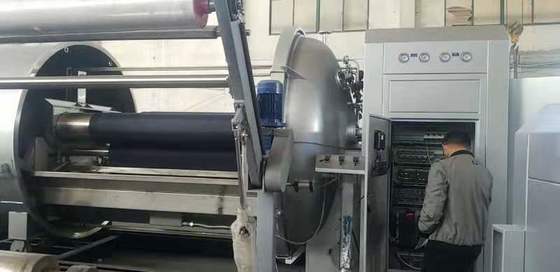

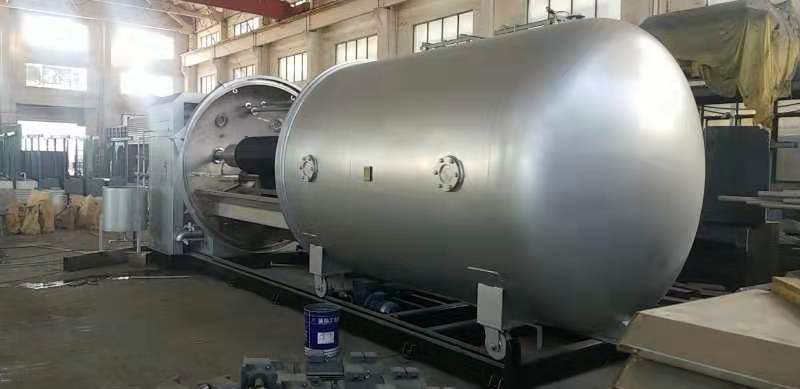

High-Temperature Low Liquor Ratio Warp Beam Dyeing Machine

Name

High-Temperature Low Liquor Ratio Warp Beam Dyeing Machine

Brand Name:	Alees
Model Number:	AS-JRJ-HT
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Meterial:

SUS 316L

Controller:

SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Voltage:

380V-50HZ

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Product Description

Introduction

Suitable fabric: Viscose,nylon,elastic fabric,silk,cotton,polyester,blended fabric.

Technical Parameters

Rolling diameter::Φ800mm/Φ1400mm

Roller width:2000-4000mm

Working width:1800-3800mm

Speed:0~130m/min

Tension range: 0~60KG

Temperature control range: 0-135℃

Rolling roller diameter: Φ300mm

Liquor Ratio: 1:2-3

Model and Specifications

Model	AS-JRJ-HT-800			AS-JRJ-HT-1200			AS-JRJ-HT-1400
Roller width(mm)	2000	3200	3400	2000	3200	3400	2000	3200	3400
A(mm)	800	800	800	1200	1200	1200	1400	1400	1400
B(mm)	1800	3000	3200	1800	3000	3200	1800	3000	3200
C(mm)	1850	1850	1850	2300	2300	2300	2650	2650	2650
D(mm)	4450	4450	4450	4850	4850	4850	5010	5010	5010
E(mm)	6000	8400	8800	6500	9800	9300	6600	9000	9400
F(mm)	7000	9400	9800	7500	9900	10300	7600	10000	10400
G(mm)	2300	2300	2300	2500	2500	2500	2550	2550	2550
H(mm)	2500	2500	2500	2700	2700	2700	3200	3200	3200
