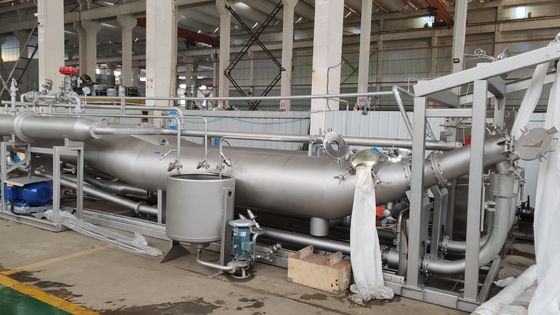

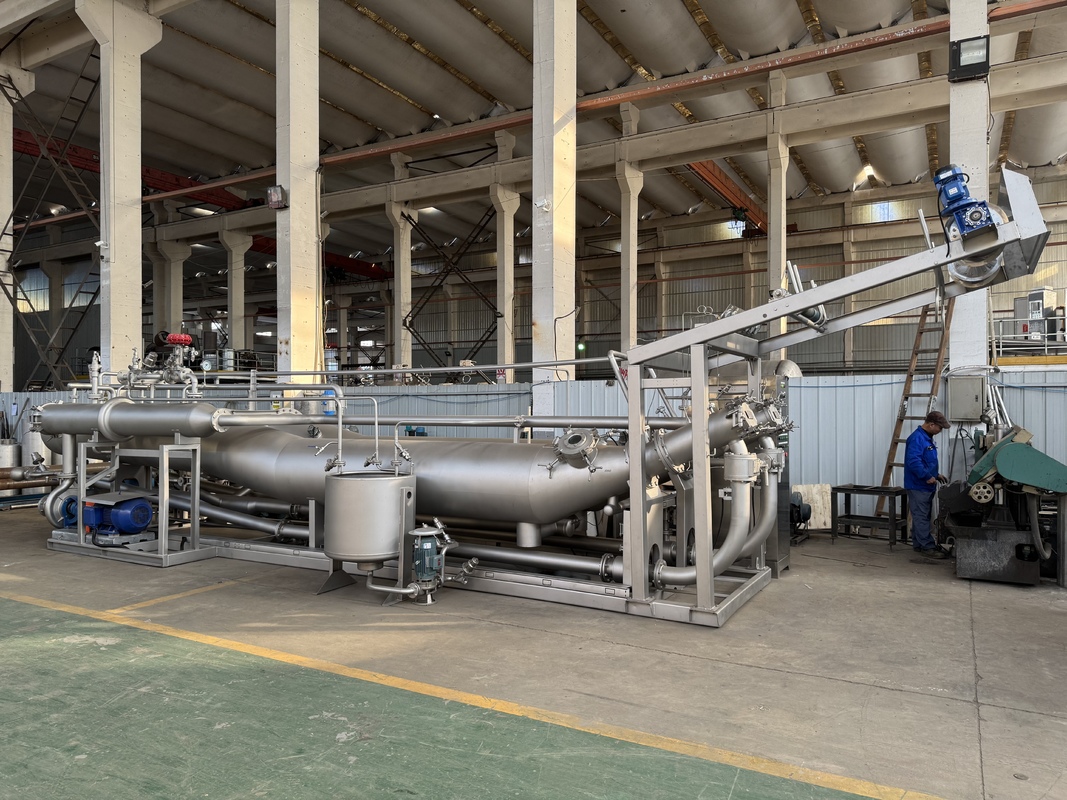

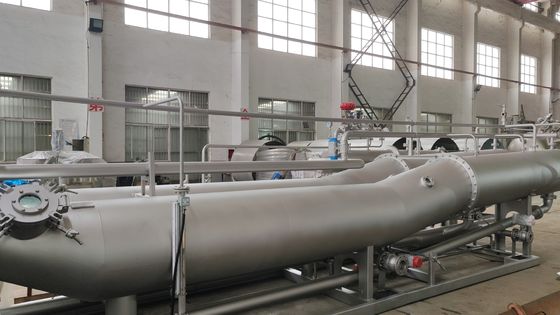

HTHP Reel-Less Woven Fabric Jet Dyeing Machine

Name: HTHP Reel-Less Woven Fabric Jet Dyeing Machine
Brand: ALEETEX(CHINA) TECHNOLOGY CO.,LTD
SKU: AS-686
Price: 127,500.00 USD
Availability: InStock

Brand Name:	Alees
Model Number:	AS-686
MOQ:	1
Price:	USD5000-250000
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

L Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ

Controller:

SEDO6007 / SETEX747 / AS9000A(China) / EAS-PCT310

Control System:

Full Automatic

Nozzle Size:

65/90/133

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Product Description

Introction

AS-686 series high temperature high pressure reel-less woven fabric jet dyeing machine operates under low tension. This is made possible by the stable, high-speed flow of both fabric and dye, which minimizes friction and wrinkles—making it well-suited for dyeing delicate materials.

TECHNICAL PARAMETERS

Maximum working pressure: 0.4Mpa

Maximum working temperature: 135℃

Heating rate: 25℃-100℃ average 5℃/min

100℃-130℃ average 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

Cooling rate: 130-100℃ average 3℃/min

100℃-85℃ average 2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

MODEL&SPECIFICATIONS

MODEL	AS-686-1T	AS-686-2T
Max.Loading Capacity	200-300KG	400-600KG
Maximum fabric speed	600-700r/min	600-700r/min
Kind of Liquid	800-1200Lit.	1600-2400Lit.
Electric Power	18.5KW/hr	37KW/hr
Steam	320-430KG/hr	630-845KG/hr
Cooling Water	1365-1820Lit/hr	2730-3640Lit/hr
Length	10700mm	10700mm
Width	1700mm	2650mm
height	3215mm	3215mm

Features

1.Reelless

Feed fabric by using jet flow without winch reel to lessen friction.

2.Flow rate control

Auto valve program run can prevent unstable travel and being tangled caused by manual (wrong) valve operation.

3.Jet nozzle

A combination of jet nozzle and guide prevents fabric from being twisted.

4.Dyeing Vessel

Run at low tension with stable arrangement and travel to lessen being entangled and wrinkle to improve reappearance and productivity and to save costs.

5.Durability

Heat exchange with U-shaped tube assures of good durability

6.Operation door

Run easily owing to low operation door(1400mm).
