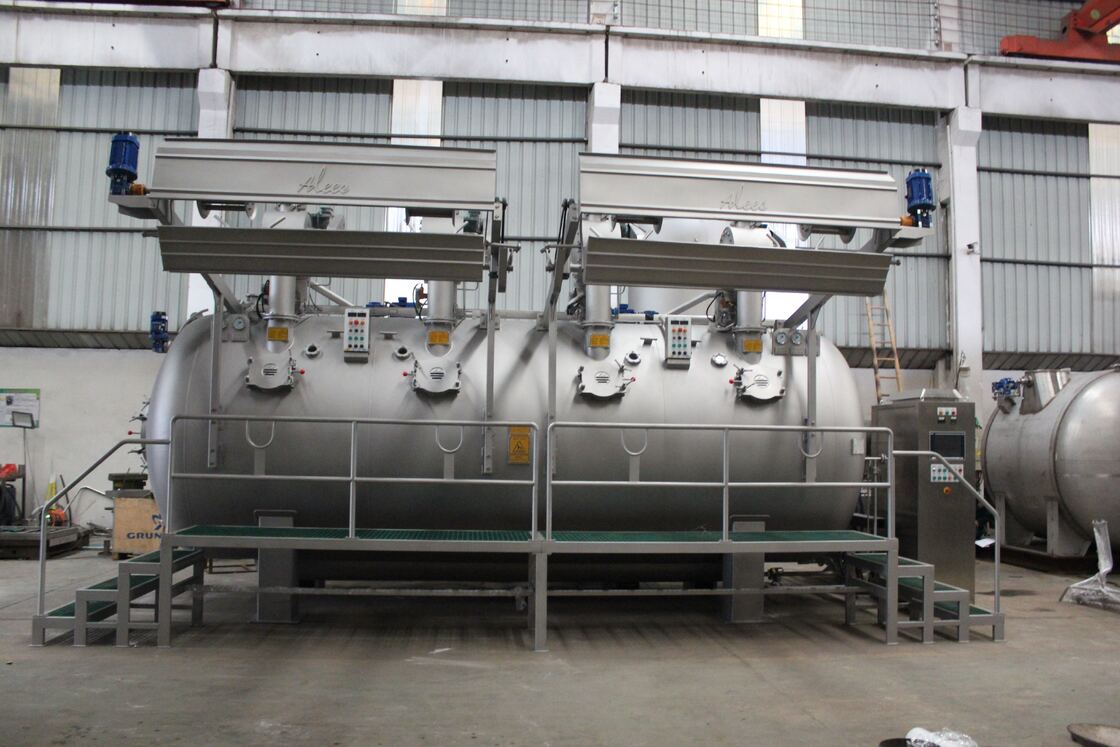

Adjustable Nozzle Environmental Energy Saving Low Consumption Fabric Dyeing Machine

Name: Adjustable Nozzle Environmental Energy Saving Low Consumption Fabric Dyeing Machine
Brand: ALEETEX(CHINA) TECHNOLOGY CO.,LTD
SKU: AS-Win
Price: 127,500.00 USD
Availability: InStock

Brand Name:	Alees
Model Number:	AS-Win
MOQ:	1
Price:	USD5000-250000
Payment Terms:	L/C
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Shape:

O Shape

Meterial:

SUS 316L

Voltage:

380V-50HZ 220V-50HZ 440V-50HZ

Controller:

SETEX797 / AS12(China) / SEDOMAT 6007 / EAS-PCT310

Control System:

Full Automatic

Nozzle Size:

110/140/168

Packaging Details:

Wooden Case/Plastic Film

Supply Ability:

50 sets per month

Highlight:

adjustable nozzle fabric dyeing machine

energy saving soft flow dyeing machine

low consumption fabric dyeing equipment

Product Description

Introduction

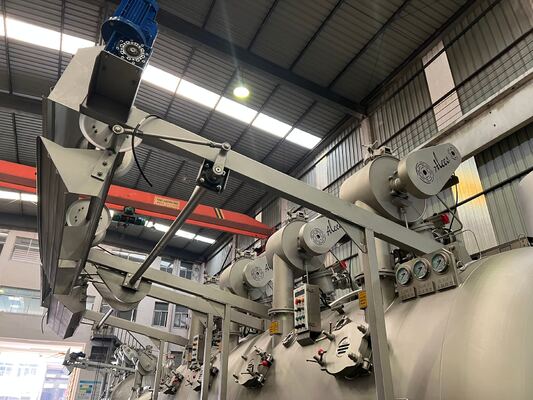

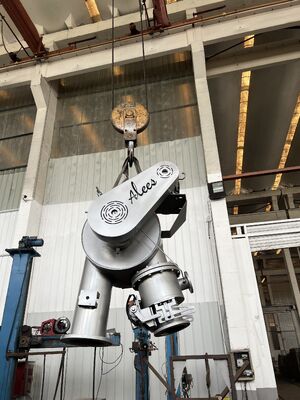

AS-Win series redefines high-temperature fabric dyeing with its industry-leading ultra-low liquor ratio capabilities, achieving 1:4.5 for 100% cotton and 1:3.5 for synthetic fibers. Engineered for versatile performance, this system efficiently processes natural fibers, cotton blends, viscose hybrids, and elastic mixed-spun textiles across a broad temperature range. Its advanced hydrodynamic design ensures thorough color penetration while maintaining fabric integrity under demanding thermal conditions. AS-Win equipped with adjustable fabric block plate, uniform dyeing liquid distribution system, adjustable nozzle, intelligent fabric seam detector and fabric storage tank with teflon tube.

Technical Parameters

Maximum fabric speed: 420r/min
Maximum working pressure: 0.4Mpa
Maximum operating temperature: 135℃
Heating rate: 20℃~100℃ average 5℃/min
100℃~130℃ average 2.5℃/min
(dry saturated steam pressure at 0.7Mpa)
Cooling rate: 130℃~60℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)
Liquor Ratio: 1:4

Model and Specifications

Model	Capacity (KG)	Dimension	Main Pump Power (KW)
Model	Capacity (KG)	LWH (MM)	Main Pump Power (KW)
AS-Win-MINI-25KG	25	278020203000	7.5
AS-Win-MINI-50KG	50	298036703200	7.5
AS-Win-MINI-100KG	100	3000*370083400	7.5
AS-Win-1T	250/270	410056004300	7.5
AS-Win-2T	500/540	530055004300	15
AS-Win-3T	750/810	650062004300	22
AS-Win-4T	1000/1080	830065004300	30
AS-Win-5T	1250/1350	965064004300	37
AS-Win-6T	1500/1620	1050065004300	45
AS-Win-8T	1875/2000	1210065004300	55
