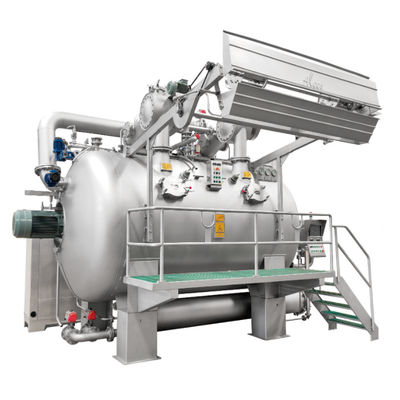

Energy Saving Soft Flow Dyeing Machine with 1:5 Liquor Ratio and 300 kg Capacity for Knit Fabric

Name: Energy Saving Soft Flow Dyeing Machine with 1:5 Liquor Ratio and 300 kg Capacity for Knit Fabric
Brand: ALEETEX(CHINA) TECHNOLOGY CO.,LTD
SKU: TJ-ES300
Price: 40,000.00 USD
Availability: InStock

Brand Name:	TONGJIANG
Model Number:	TJ-ES300
MOQ:	1 Set
Price:	USD 30000-50000 / Set
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO 9001:2015, CE

Machine Type:

Low Liquor Ratio Soft Flow Dyeing Machine

Capacity:

300 Kg

Liquor Ratio:

1:5

Max Temperature:

140°C

Fabric Type:

Knit, Cotton, Blended

Heating Method:

Steam Heating

Main Pump Power:

11 KW

Motor Power:

4.0 KW

Material:

SUS316L Stainless Steel

Control System:

PLC Touch Screen With Remote Monitoring

Water Saving Rate:

Up To 40%

Dimensions:

4200 X 2500 X 3000 Mm

Packaging Details:

Standard export wooden case packaging with moisture-proof film and foam protection

Supply Ability:

15 Sets per Month

Highlight:

Low Liquor Ratio Dyeing

Energy Efficient Processing

Water Saving Technology

Product Description

Energy Saving Low Liquor Ratio Soft Flow Dyeing Machine 300kg Capacity Knit Fabric Textile Processing

Energy Saving Low Liquor Ratio Soft Flow Dyeing Machine | 300kg

The TONGJIANG TJ-ES300 represents the next generation of sustainable textile dyeing technology. Engineered with an ultra-low 1:5 liquor ratio, this energy saving soft flow dyeing machine dramatically reduces water consumption, steam usage and chemical costs while maintaining superior dyeing quality for knit fabrics.

Key Features

Ultra-Low 1:5 Liquor Ratio: Revolutionary dyeing chamber design achieves an industry-leading 1:5 liquor ratio, reducing water consumption by up to 40% compared to conventional 1:8 ratio machines.
Energy Efficient Processing: Integrated heat recovery system captures and reuses thermal energy from discharged dye liquor, cutting steam consumption by approximately 30% per batch.
Water Saving Technology: Reduced water usage translates directly to lower effluent treatment costs and improved environmental compliance for textile dyeing operations.
Advanced Flow Dynamics: Optimized soft flow nozzle design ensures gentle fabric transport with minimal tension, preventing stretching and distortion of delicate knit fabrics.
PLC Remote Monitoring: Full-color touch screen PLC controller with optional remote monitoring capability for real-time production tracking and parameter adjustment.
SUS316L Construction: All dyeing chamber and piping components fabricated from SUS316L stainless steel for maximum durability and chemical resistance.

Technical Specifications

Model	TJ-ES300
Capacity	300 kg per batch
Liquor Ratio	1:5
Max Temperature	140°C
Main Pump Power	11 kW
Motor Power	4.0 kW
Heating Method	Steam Heating with Heat Recovery
Material	SUS316L Stainless Steel
Control System	PLC Touch Screen with Remote Monitoring
Water Saving Rate	Up to 40%
Dimensions	4200 x 2500 x 3000 mm

Applications

This low liquor ratio soft flow dyeing machine is the ideal choice for knitwear manufacturers, cotton textile mills and blended fabric producers seeking to reduce operational costs while meeting increasingly stringent environmental regulations. The gentle fabric handling makes it particularly suitable for viscose, modal, cotton jersey and other delicate knit constructions.

Cost Savings Analysis

Based on an average production volume of 100 batches per month, the TJ-ES300 with 1:5 liquor ratio can save approximately 180,000 liters of water, 15 tons of steam and 3,000 kWh of electricity monthly compared to conventional 1:8 ratio machines. Contact TONGJIANG for a detailed ROI calculation tailored to your production requirements.
